WeEn announces family of 1200-2300V SiC modules

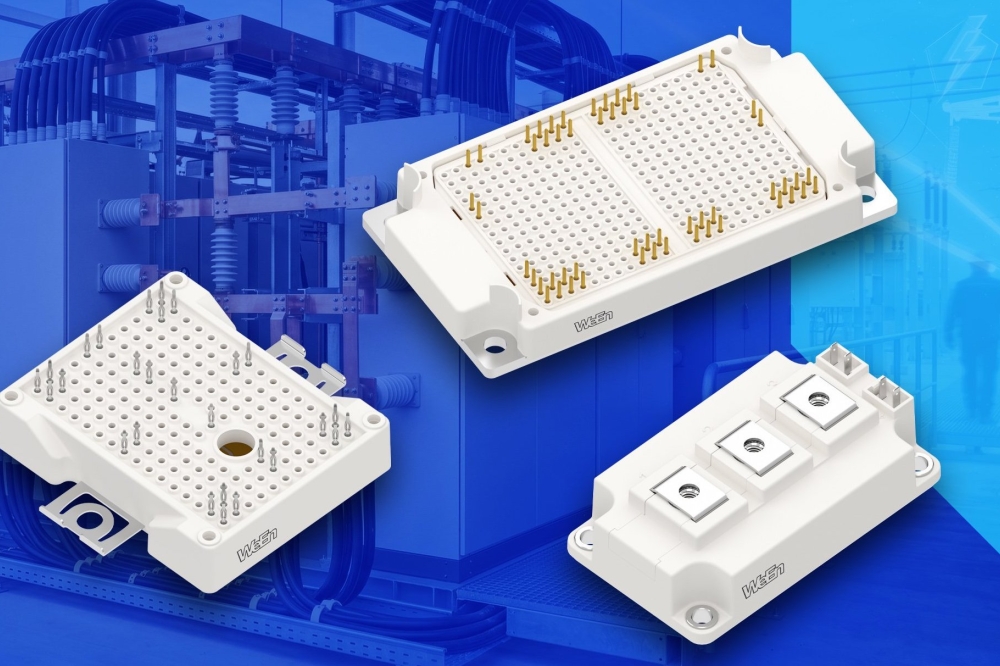

WeEn Semiconductors, the joint company formed by NXP Semiconductors and JAC Capital in 2015, has launched a new family of AC-DC and DC-DC SiC power modules to target the growing range of solid-state transformer (SST) applications, as well as EV super chargers and smart-grid/renewable applications.
Over 20 high-efficiency, high-reliability modules have been developed at time of launch. These are available in an array of packages and with voltages ranging from 1200 to 2300 V, RDS(on) values as low as 1.5 mΩ and customer-specific configurations can also be created.
Module configurations have been created to cater for a wide array of SST applications, including grid PFC for the latest generation of AI racks, enabling conversion from 35 kVAC to 800 VDC in a single stage. supply the. This includes 3-level topology modules for enhanced EMI performance (e.g. WMSC5R0N17B3T), and 2-level devices, for easier control and smaller footprints (e.g. WMSC5R0F23B3T).
Similarly, a wide range of half bridge modules for LLC/DAB primary and secondary applications have also been announced with packaging options that include B2, B3 and 62 mm screw mount housing.
All modules in the family offer low inductance and have been developed with both design flexibility and layout simplicity in mind, according to the company. They feature a pin order that both leaves space for the gate driving circuit while also considering device integration and electrical safety.
A range of options for the modules is also available, including for the direct bonded copper, case, and silicon-gel material, as well as the mount, pin type, plating and thermal-interface material pre-application service. These are available via the company’s collaborative custom design team.
Kevin Shen, president of WeEn Semiconductors, said: “We’ve launched the new WMSC modules cover roughly 90 percent of all SST applications and these are also ideally suited to the smart grid, renewables and other high-voltage systems. They are a significant breakthrough for the industry and offer higher switching speeds and higher breakdown voltages, which in turn allows for direct connection to the medium-voltage grid as well as reduced magnetics, higher efficiencies and simplified cooling.”
All modules are available for sampling and in production quantities.
