Imec unlocks system-level III-V chiplet integration
Research organisation Imec is evolving its 300mm RF silicon interposer into a system-level platform for the heterogeneous integration of III-V chiplets on Si-CMOS.
By uniquely combining high-density embedded capacitors, a scalable modelling framework for passive components, and laser-assisted bonding for III-V chiplet assembly, the platform lays the foundation for next-generation wireless (mmWave and sub-THz) systems, as well as RF-grade signal handling for ultrafast data centre applications.
As wireless systems move into mmWave and sub-THz frequencies, and electronic and photonic interfaces in data centres are increasingly reaching their limits, it is becoming more difficult to deliver high-performance signal handling without driving up system integration complexity, cost, power consumption, and footprint.
A promising solution is to combine the superior gain, power, and efficiency of III-V materials – such as InP, GaAs, and GaN – with the scalability and cost efficiency of Si-CMOS technology. Chiplet-based heterogeneous integration on a high-performance RF silicon interposer makes this possible: it keeps performance-critical functions in compact III-V chiplets, while the interposer provides low-loss interconnects and hosts the remaining passive components.
Imec has been steadily advancing such a platform. In 2024, it demonstrated seamless InP chiplet integration on a 300mm RF silicon interposer with negligible insertion loss at 140GHz. In 2025, it extended the platform’s record-low insertion loss up to 325GHz. Now, Imec expands this platform with three new, complementary enablers: high-density embedded capacitors, a scalable modelling framework for passive components, and laser-assisted bonding for III-V chiplet assembly.
“A key lever to reduce III-V chiplet size and cost is the offloading of passive components – such as decoupling capacitors – onto the RF silicon interposer,” said Xiao Sun, principal member of technical staff at Imec.
“In a paper presented at this year’s IMS/RFIC conference, we demonstrate how combining this offloading approach with a new MIMCAP architecture enables a 10-to-100-fold increase in capacitance density compared to typical on-chip capacitors in III-V technologies. This supports more compact and cost-efficient system designs and improves power delivery for mmWave and sub-THz wireless systems as well as high-speed data centre applications.”

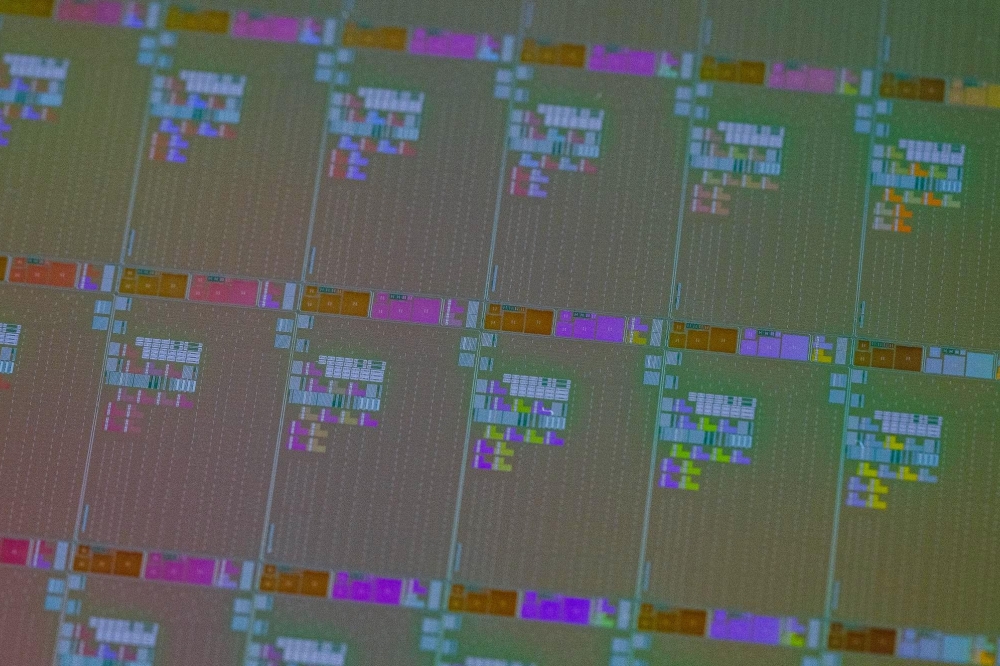

Imec’s new MIM capacitor (MIMCAP) architecture (pictured above) combines a high-k aluminum-hafnium-oxide dielectric with 3D oxide-stud structures in the back-end-of-line (BEOL).
Complementing this effort, Imec recently presented a modelling framework for RF interposer passives, validated up to the sub-THz regime (~300GHz). Imec’s model enables designers to accurately predict circuit performance as geometries change, without needing to re-simulate or measure every variation, significantly reducing development time.
To date, Imec’s framework has focused on transmission line performance – but lays the foundation for a comprehensive design library that is being extended to other passive components, including inductors and MIMCAPs.
Laser-assisted bonding
Finally, Imec demonstrated the use of laser-assisted bonding to integrate III-V chiplets onto its RF silicon interposer, enabling assembly of chiplets on a complex, passives-rich stack without compromising thermal budgets, or damaging temperature-sensitive interposer layers.
Imec’s approach achieves alignment accuracy below 600nm, and rotational misalignment below 0.05° across 43 devices. RF measurements confirm preserved performance after assembly, with reflection below −15 dB in the 110-170GHz range, demonstrating a viable path toward fully assembled high-frequency chiplet-based systems.
Xiao Sun: “With this work, we demonstrate a uniquely integrated platform that brings together performance, scalability, and manufacturability. Our next priority is to further advance the platform’s technology readiness, and to enable support for low-volume manufacturing – helping our partners more easily develop and scale next-generation RF systems.”
